Striking a layer of stubborn Sydney sandstone, shale, or dense hardpan can instantly bring a job site to a grinding halt. Forcing a standard bucket through cemented ground is a recipe for disaster—it strains your hydraulics, cracks bucket welds, and burns through diesel for minimal progress. When you hit a wall of hard ground, general earthmoving tactics simply do not work. You need targeted, concentrated breaking force.

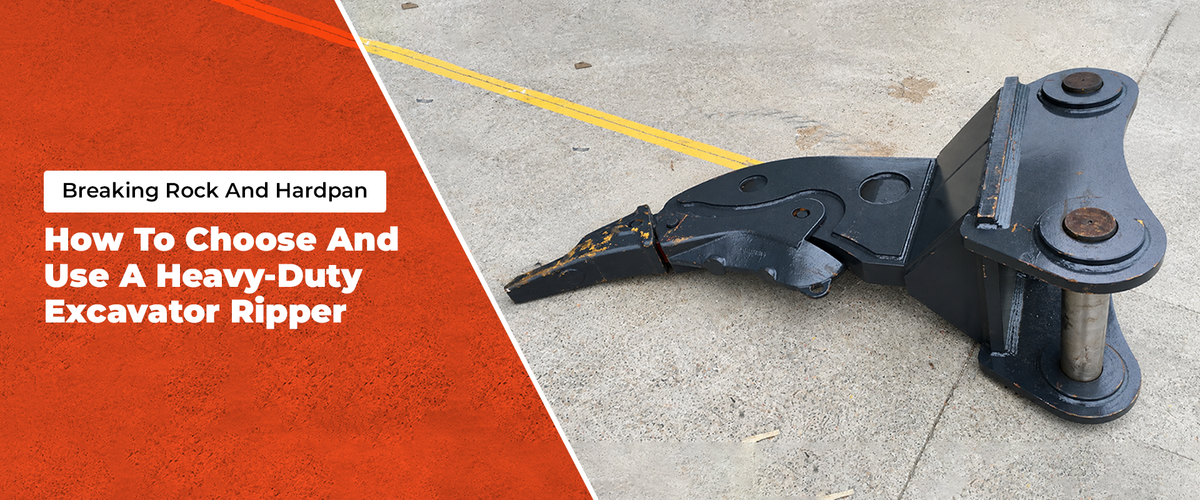

That is where a heavy-duty single-point excavator ripper becomes the most valuable tool in your fleet. By channeling your machine’s full breakout force into a single, high-penetration tooth, you can shatter rock and hardpan effortlessly, prepping the ground for clean bucket extraction while protecting your excavator from unnecessary wear and tear.
Key Takeaways
- Targeted Penetration Power: A single-point ripper concentrates immense hydraulic force onto one point, fracturing rock far faster than any bucket can.
- Protects Fleet Investments: Ripping hard ground first prevents cracked boom arms, blown hydraulic seals, and prematurely worn bucket teeth.
- Selection Matters: Choosing high-tensile steel, correct shank geometry, and proper tonnage matching prevents shank snaps and expensive downtime.
- Smarter Technique Saves Fuel: Ripping along natural fault lines at a proper entry angle cuts job times and significantly lowers fuel burn.
How to Choose the Right Heavy-Duty Excavator Ripper
Not all rippers can handle tough Australian conditions. Selecting the right attachment means matching your machine’s weight and breakout capability to the ground density you are up against:
|
Key Feature |
What to Look For |
Why It Matters |
|
Steel Grade & Construction |
Solid, single-piece high-tensile steel (such as Hardox) with gusseted side plates. |
Prevents shank bending under extreme breakout leverage when prying hard rock. |
|
Replaceable Boot System |
Heavy-duty, quick-change boot and boot pins with high-abrasion wear guards. |
Allows fast, low-cost field maintenance without having to replace or weld the entire shank. |
|
Shank Geometry & Radius |
Precision-curved shank profile matched to your machine’s pin setup. |
Delivers optimal ripping angles and maximum leverage without striking the quick hitch. |
Best Practices: How to Use an Excavator Ripper Safely & Efficiently
Shattering rock efficiently requires good operator technique—not just raw power. Follow these ground rules to break ground quickly while keeping your machine out of the repair shop:
- Maintain the Correct Attack Angle: Drive the ripper tooth into the ground at a 45 to 60 degree angle. Let the crowd arm pull the tooth toward the machine rather than forcing down pressure with the main boom.
- Work Natural Seams and Faults: Always rip parallel or diagonal to natural rock seams. Splitting the material along existing fractures uses far less hydraulic power and speeds up production.
- Never Slew Side-to-Side: Avoid twisting or slewing the cab while the ripper tooth is locked into solid ground. Side-loading is the primary cause of bent shanks, sheared pins, and damaged booms.
- Use the Cross-Hatch Technique: For a thick hard pan, make parallel passes a few feet apart, then cross back at a right angle to break the ground into manageable aggregate for your bucket.
